Bogmating finds in many years of practice that the harmonic in the user's power distribution system is partially from the power grid and mostly from the user's electric equipment, such as frequency converter, rectifier, UPS, energy saving lamp and computer. To filter the harmonic in the power distribution system to the greatest extent, Bogmating has launched professional harmonic suppression products to provide powerful guarantee for the user to achieve quality power quality depending on reasonable harmonic suppression scheme.
The harmonic protector introduced by Bogmating protects a variety of electric precision devices, such as computer, PLC, nuclear magnetic resonance, CT scan and sensor wireless equipment in higher-frequency harmonic environment to prevent harmonic hazards, effectively reduces instrument and equipment misoperation, improves the equipment service life and effectively overcomes the power quality reduction, equipment loss and performance disorder caused by higher harmonic to prevent unnecessary losses.
Technical parameters
|
Rated voltage |
220V/380V/690V ±20% AC |
|
Frequency |
50Hz/60Hz |
|
Protection grade |
IP40 /installed with IP54 suite |
|
Maximum surge current |
14000A |
|
Wiring mode |
Apply to single-phase or three-phase four-wire/PE wire protection |
|
Residual surge voltage suppression |
Residual surge voltage value can be limited below 1KV, so that the surge energy will not damage the equipment |
|
Power loss |
≤1W |
|
Insulation resistance |
＞50MΩ |
|
Withstand voltage |
Terminal and shell withstand 2500V AC 1S without breakdown or flashover |
|
Overload protection |
Front air switch |
|
Protection frequency |
1KHz-20MHz |
|
Leakage current 1.431mA |
1.431mA |
|
Filter performance |
Obvious suppression effect on network source transient, 50DB attenuation near 120KHZ and obvious filtering effect on 2KHZ-20MHZ clutters |
|
Service environment |
No explosion, corrosive gases or conducting dust |
|
Altitude |
≤4000m |
|
Temperature range |
-35℃～75℃ |
|
Service life |
Design service life of above 20 years |
| Maintenance mode | Maintenance-free |
|
Installation mode |
35mm card rail installation |
| Manufacturing standards |
IEC61000-4-5, IEC60939-1-2, GB14549-93 Quality of Electric Energy Supply - Public Supply Network QualityGB12325-90 Power Quality - Admissible Deviation of Supply VoltageStructural features
|

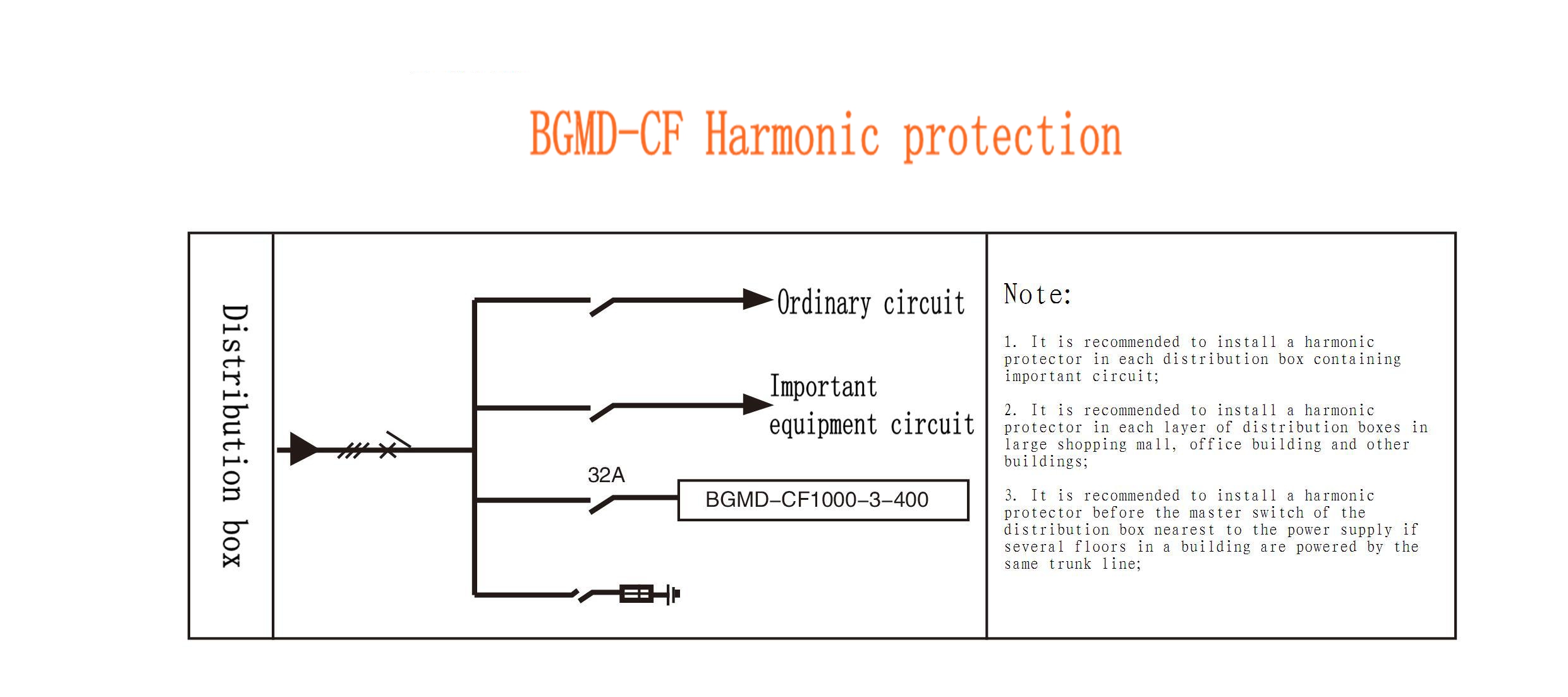

Structure features
● Reasonable structure design, simple wiring and convenient installation and debugging
● Comprehensively overcome high-frequency interference and improve the service life of computer, PLC, DCS and other equipment.
Specification model
● Model selection table of harmonic protector
|
Model |
Voltage class (V) |
Boundary dimensions (mm) |
Protection frequency |
Installation mode |
|---|---|---|---|---|
|
BGMD-CF99-3-400V |
400. |
70*90*130 |
1KHz-20MHz |
Wall-mounted rail type |
|
BGMD-CF1000-3-400V |
400 |
70*90*130 |
1KHz-20MHz |
Wall-mounted rail type |
|
BGMD-CF1000E-3-400V |
400 |
70*90*130 |
1KHz-20MHz |
Wall-mounted rail type |
